Frame material - Cˣ - Cross Carbon | Wheelset material - Carbon | Groupset - Sram Force AXS | Frame fit - Aero Road Race | Tyre clearance - 35mm | Real World Weight - 8.25kg
IKUISTA Fit Recommendation
Bike:—
· —
Important: This tool provides a guideline recommendation based on the measurements you enter.
We cannot guarantee the recommendation is perfect — flexibility, riding style, saddle setup, and personal preference matter. Your final configuration and component choices (size, stem, bar, cranks, spacers) are always your responsibility.
How to measure:
Stand barefoot against a wall. Look forward. Measure to the top of your head.
How to measure:
Barefoot. Place a book firmly into your crotch (like a saddle) and measure from floor to the top edge. Most people are 65–95 cm — if yours is far from this, check you measured in cm, not inches.
How to measure:
Measure bone-to-bone across shoulders (acromion to acromion), not shirt seam to seam. Bar width is measured center-to-center (c-c).
Riding positioni
What this affects:
This slider affects frame size, stem and spacers. In a size-overlap zone a more comfortable position picks a bigger frame + shorter stem (higher front end); a more aggressive position picks a smaller frame + longer stem (lower front end).
Endurance
ComfortEnduranceRace
i
What this affects:
With clip-on aero bars your forearms rest on pads and your grip moves forward. We then recommend a shorter stem and, between two sizes, the bigger frame — a higher, more stable front end is easier to hold in the aero position. In aero use the saddle often moves slightly forward and up.
Extra measurement (optional)
How to measure:
Measure suprasternal notch (base of throat) → crotch (same point as inseam). Tape runs along the front of your body. This refines frame size and cockpit/stem. Most people are 45–65 cm — if yours is far from this, check you measured in cm, not inches.
How to test:
Stand with straight legs and reach toward your toes. Can't get near = stiff. Reach your toes = average. Palms flat on the floor = supple. This tells us how low a riding position you can hold comfortably.
Your recommendation
Recommended size:—
This is the bike frame size. Choose this when you order.
Saddle height:—
Set your saddle to this height. Measure from the top of the saddle down to the pedal, with the pedal at its lowest point. Fine-tune to comfort.
Handlebar width:—
Order a handlebar of this width.
Stem:—
The short part that connects the handlebar to the frame. Order this length.
Spacers:—
Small rings under the stem that set the handlebar height. Start with this amount.
Configurator link missing: add configurator_url to the bike_model entry.
Tip: take a screenshot before going to the configurator.
Expected availability–
Missing components
Pay in parts – up to 36 months at 0% interest with Zaver financing.
Show financing calculation
With 36-month term–/mo
12 mo24 mo36 mo
Estimated monthly payment–
Estimated total cost–
Product price–
Setup fee–
Monthly fee–/mo
Interest estimate–
This calculation is an estimate. Currency conversion is indicative. Final monthly payment and terms are shown at checkout before confirmation.
Read financing terms.
Bike Leasing Options
Choose your preferred shipping partner at checkout. IKUISTA offers flexible delivery options through Vapaus and GoByBike, both trusted carriers. Select the option that works best for your location and timeline. Each carrier provides reliable tracking and professional handling of your bike or components, ensuring your order arrives in perfect condition.
30-day Fit Guarantee
If your bike doesn’t feel right within 30 days of delivery, we’ll help you dial it in. How the Fit Guarantee works
Lifetime Crash Replacement
Ride with confidence. If your frame is damaged, we’ll replace it up to 30% of the frame price. How it works
Optional Extended Warranty
Purchase Here - Add resale value and peace of mind. The frame warranty transfers to the next owner. How it works
Trade-in & Ikuista Renewed
Trade your Ikuista back toward a new one, at a value we set by inspection. We take back any Ikuista, whatever its age. How it works
Assembled & Checked in Finland
Every bike is assembled to order in and individually quality-checked before leaving our facility. Estimated dispatch time is approximately 2 weeks from the date of purchase.
We take the whole bike back for recycling
Hand over the whole bike at the end of its life. No dismantling, no sorting. Our partner Kuusakoski recycles it all, metal and carbon alike, back into raw material. Read more
Wheelset: Valois MNTE 60 Carbon Wheelset, 700C, 60 mm Rim Depth, 23 mm Internal Width, 30 mm External Width, Ratchet Hub System (36T Engagement), CenterLock Disc, Pillar Aero 1423 Straight Pull Spokes, Approx. 1640 g Wheelset Weight, Max System Weight 130 kg
Tires: Continental Grand Prix 5000 S TR Folding
Tire Size: 700×30C (30-622)
Tubeless Ready: Yes (Rim Tape Installed)
Tubeless Valves: IKUISTA 80 mm (Included, Not Installed)
Inner Tubes: Vittoria 28–42C Presta 48 mm Installed
DRIVETRAIN
Groupset: SRAM Force AXS Electronic
Configuration: 2×12-Speed
Shifters: SRAM Force AXS HRD
Front Derailleur: SRAM Force AXS
Rear Derailleur: SRAM Force AXS E1
Crankset: SRAM Force DUB
Chainrings: 48–35T
Cassette: SRAM Force XG-1270, 10–36T
Chain: SRAM Force Flattop (12/13-Speed Compatible)
Rotors: SRAM CenterLine X CenterLock, 160 mm Front / 160 mm Rear
COCKPIT
Cockpit: Valois Cˣ HBRD Integrated Carbon Cockpit
Saddle: IKUISTA Vael 145 mm
Handlebar Tape: IKUISTA Performance Tape
ELECTRONICS
Battery: SRAM eTap AXS Batteries (2 Included)
Charger: SRAM eTap AXS Charger
ACCESSORIES
Bike Bell
Reflector Set
IKUISTA Bicycle Bag
Product Manual
WEIGHT
Claimed Weight: Approx. 8.25kg
WEIGHT LIMIT
Maximum System Weight: 120 kg (Bike + Rider + Cargo)
PRODUCT DISCLAIMER
Specifications, geometry, colors, graphics, components, weights, and pricing may change without prior notice.
Product images may show optional equipment, prototype components, or specifications not included in the final production model.
Equivalent or higher-specification components may be substituted due to continuous product development or component availability.
Claimed weights are based on pre-production samples and manufacturer measurements. Actual production weights may vary by frame size, paint finish, component tolerances, tire choice, wheel manufacturing tolerances, and production batch.
Tire clearance values are based on measured tire dimensions and may vary between manufacturers and wheel combinations.
Bicycle weights are stated without pedals unless otherwise specified.
Maximum system weight includes the bicycle, rider, clothing, accessories, luggage, and cargo.
MSRP pricing may vary by country, taxes, shipping costs, import duties, and dealer-installed options.
Geometry chart
Bike Geometry & Sizes
Measurement
XS
S
M
L
XL
A — Seat tube length
480 mm
500 mm
520 mm
540 mm
560 mm
B — Seat tube angle
74°
74°
74°
74°
74°
C — Head tube length
135 mm
136 mm
149 mm
155 mm
161 mm
D — Head tube angle
71°
71.5°
72°
72°
72.5°
E — Top tube length
507 mm
519 mm
544 mm
562 mm
580 mm
G — B.B. drop
77 mm
75 mm
73 mm
73 mm
70 mm
H — Chainstay length
410 mm
410 mm
410 mm
410 mm
410 mm
I — Fork offset
50 mm
50 mm
50 mm
50 mm
50 mm
J — Wheelbase
967 mm
982 mm
997 mm
1015 mm
1030 mm
K — Reach
372 mm
383 mm
395 mm
407 mm
419 mm
L — Stack
480 mm
500 mm
520 mm
541 mm
561 mm
Inseam
72–78 cm
76–81 cm
79–85 cm
83–88 cm
86–92 cm
Rider height
161–171 cm
167–177 cm
173–183 cm
179–189 cm
185–195 cm
Components geometry
Component Geometry
Measurement
XS
S
M
L
XL
Spacers (mm)
30mm
30mm
30mm
30mm
30mm
Stem length (mm)
80mm
90mm
100mm
110mm
120mm
Handlebar width (mm)
380mm
380mm
400mm
400mm
420mm
Crank length (mm)
165mm
170mm
170mm
170mm
172.5mm
Front chainring
48/35T
48/35T
48/35T
48/35T
48/35T
Saddle post minimum insertion (mm)
–
–
–
–
–
Saddle post maximum extension (mm)
–
–
–
–
–
Product manuals
Note: Some ad blockers, privacy extensions, antivirus software, corporate networks, or browser security settings may prevent documents from opening. If a file does not load, try another browser or temporarily disable blocking extensions.
I have to say, compared to my own old beater bike, this is a completely different ride.
— AamulehtiTomi Pyy, journalist, Aamulehti, First ride impression, July 2026
Vektori – Full Aero Performance, Built for Maximum Speed
Vektori is IKUISTA’s pure aero road platform, engineered with one priority: minimizing drag and maximizing speed. Every tube profile, junction, and integration detail is shaped to convert rider power directly into forward motion, making Vektori the fastest bike in the IKUISTA lineup.
Its aggressive race geometry, integrated cockpit, and high torsional stiffness deliver immediate response and stability at high speeds. Thanks to its controlled front end and compatibility with clip-on aero bars, Vektori also adapts naturally to triathlon use — offering an efficient, race-ready setup without the limitations of a dedicated TT frame.

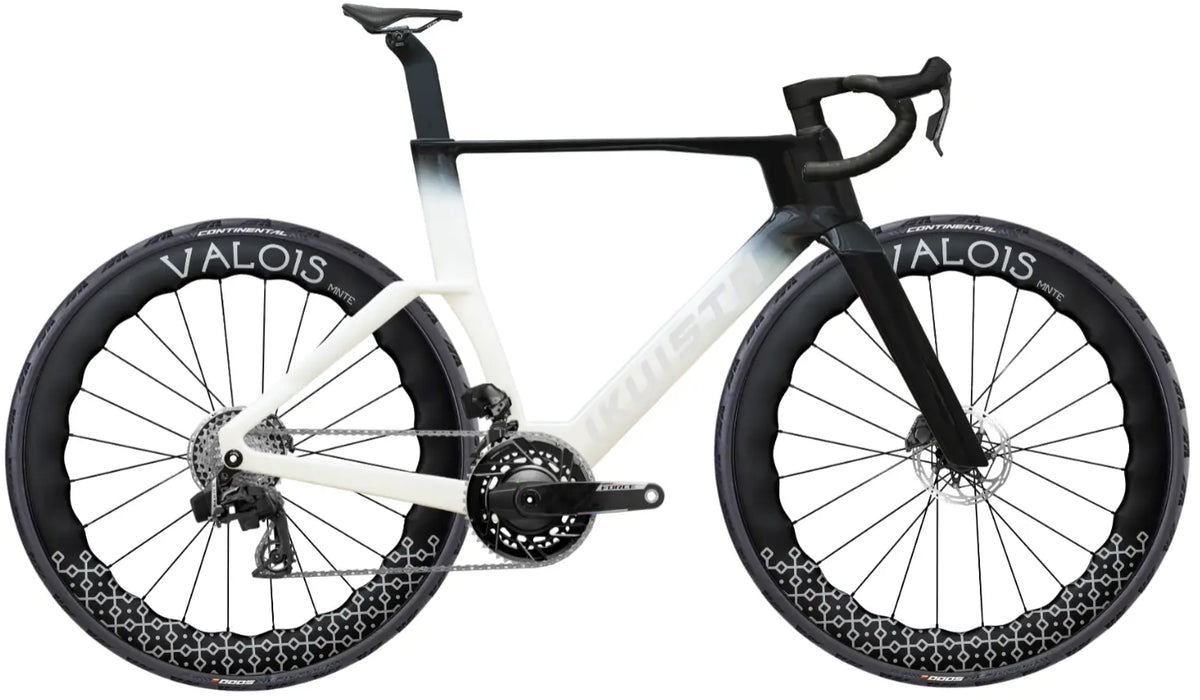

Vektori Cˣ SRAM Force AXS is a high-performance aero road bike for riders who want a lighter and more advanced wireless setup. It is designed for fast road riding, racing, and demanding performance use.
The Vektori Cˣ carbon frame is paired with an integrated cockpit and carbon wheelset to maximize aerodynamic efficiency and stiffness. SRAM Force AXS delivers fast and precise wireless shifting, creating a responsive and performance-driven ride.
Built with a Vektori Cˣ carbon frameset, SRAM Force AXS 2x12 drivetrain, Valois MNTE 60 carbon wheelset, Continental Grand Prix 5000 S TR 30 mm tires, and Valois C∞ HBRD integrated cockpit. A high-end setup focused on speed and precision.
