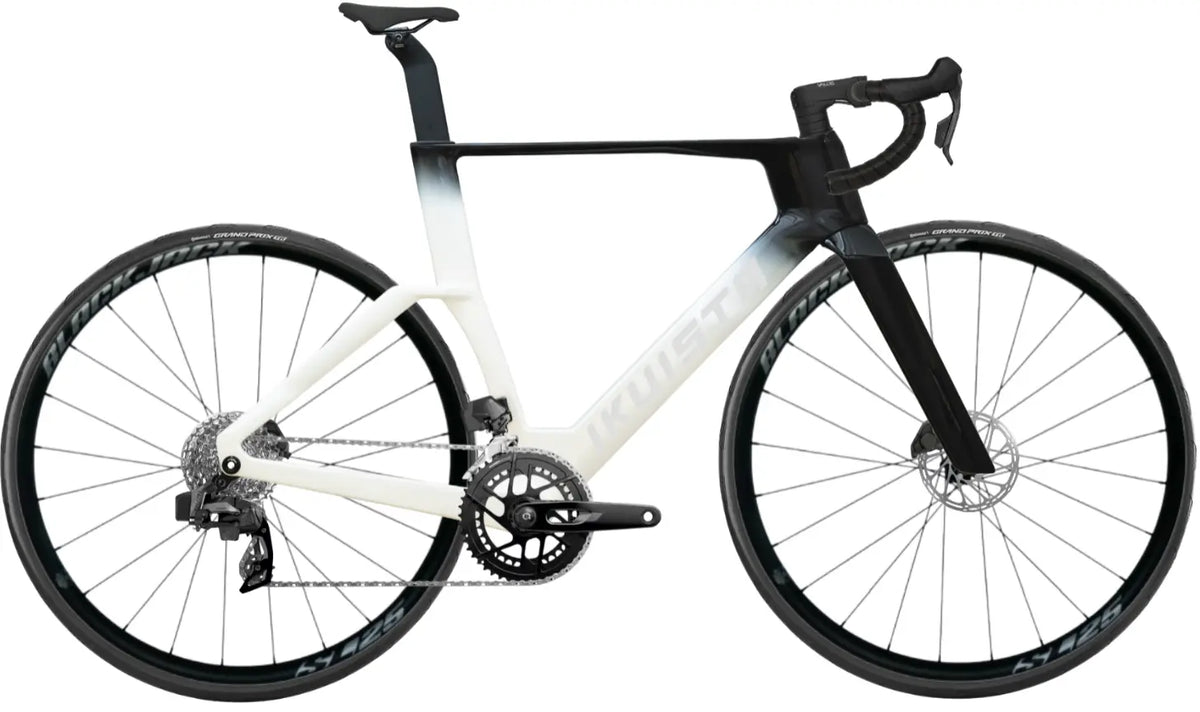

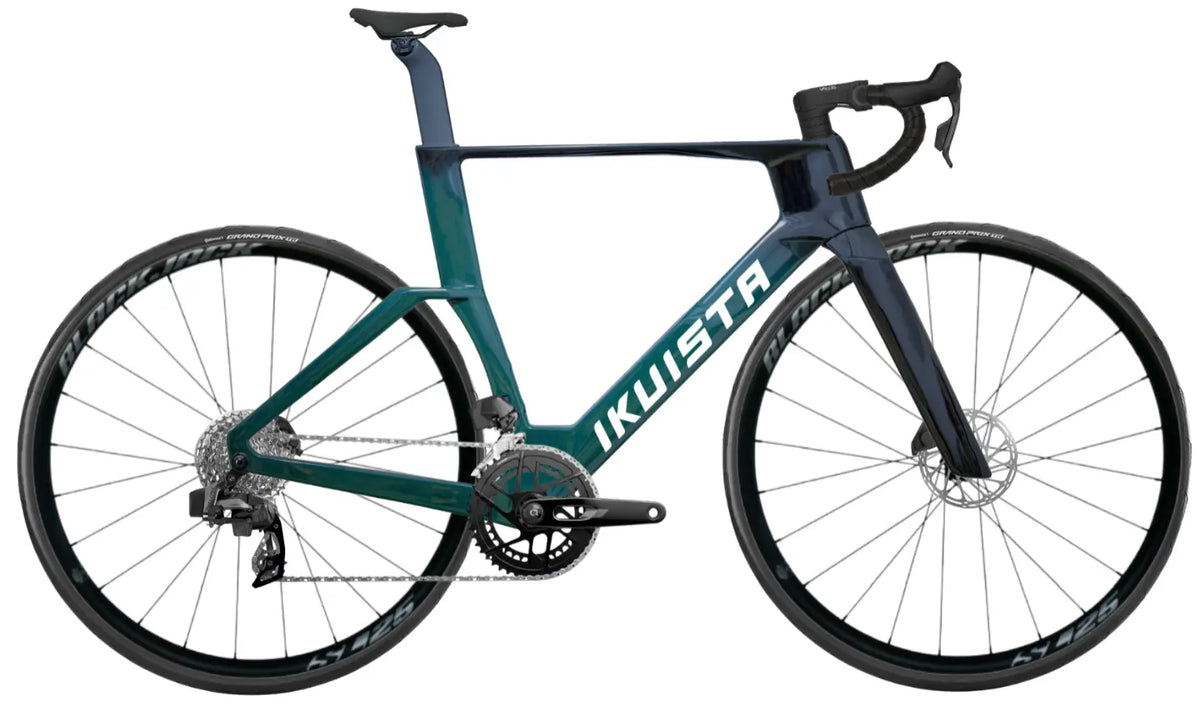

Frame material - Cˣ - Cross Carbon | Wheelset material - Aluminium | Groupset - Sram Rival AXS | Frame fit - Aero Road Race | Tyre clearance - 35mm | Real World Weight - 8.94kg
IKUISTA Fit Recommendation
- We cannot guarantee the recommendation is perfect — flexibility, riding style, saddle setup, and personal preference matter. Your final configuration and component choices (size, stem, bar, cranks, spacers) are always your responsibility.
Your recommendation
Recommended size: —
This is the bike frame size. Choose this when you order.
Saddle height: —
Set your saddle to this height. Measure from the top of the saddle down to the pedal, with the pedal at its lowest point. Fine-tune to comfort.
Handlebar width: —
Order a handlebar of this width.
Stem: —
The short part that connects the handlebar to the frame. Order this length.
Spacers: —
Small rings under the stem that set the handlebar height. Start with this amount.
Crank length: —
The length of the crank arms. Order this length.
Pay in parts – up to 36 months at 0% interest with Zaver financing.
Show financing calculation
With 36-month term
–/mo
30-day Fit Guarantee
If your bike doesn’t feel right within 30 days of delivery, we’ll help you dial it in. How the Fit Guarantee works
Lifetime Crash Replacement
Ride with confidence. If your frame is damaged, we’ll replace it up to 30% of the frame price. How it works
Optional Extended Warranty
Purchase Here - Add resale value and peace of mind. The frame warranty transfers to the next owner. How it works
Trade-in & Ikuista Renewed
Trade your Ikuista back toward a new one, at a value we set by inspection. We take back any Ikuista, whatever its age. How it works
Assembled & Checked in Finland
Every bike is assembled to order in and individually quality-checked before leaving our facility. Estimated dispatch time is approximately 2 weeks from the date of purchase.
We take the whole bike back for recycling
Hand over the whole bike at the end of its life. No dismantling, no sorting. Our partner Kuusakoski recycles it all, metal and carbon alike, back into raw material. Read more
Components
Components
Geometry chart
Bike Geometry & Sizes
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A — Seat tube length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| B — Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| C — Head tube length | 135 mm | 136 mm | 149 mm | 155 mm | 161 mm |
| D — Head tube angle | 71° | 71.5° | 72° | 72° | 72.5° |
| E — Top tube length | 507 mm | 519 mm | 544 mm | 562 mm | 580 mm |
| G — B.B. drop | 77 mm | 75 mm | 73 mm | 73 mm | 70 mm |
| H — Chainstay length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| I — Fork offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| J — Wheelbase | 967 mm | 982 mm | 997 mm | 1015 mm | 1030 mm |
| K — Reach | 372 mm | 383 mm | 395 mm | 407 mm | 419 mm |
| L — Stack | 480 mm | 500 mm | 520 mm | 541 mm | 561 mm |
| Inseam | 72–76 cm | 75–80 cm | 79–85 cm | 83–89 cm | 87–94 cm |
| Rider height | 160–167 cm | 168–175 cm | 174–182 cm | 180–188 cm | 188–198 cm |
Components geometry
Component Geometry
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Spacers (mm) | 30mm | 30mm | 30mm | 30mm | 30mm |
| Stem length (mm) | 80mm | 90mm | 100mm | 110mm | 110mm |
| Handlebar width (mm) | 400mm | 400mm | 420mm | 420mm | 440mm |
| Crank length (mm) | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Front chainring | 48/35T | 48/35T | 48/35T | 48/35T | 48/35T |
| Saddle post minimum insertion (mm) | – | – | – | – | – |
| Saddle post maximum extension (mm) | – | – | – | – | – |
