Halo Cˣ Sram Rival XPLR AXS

From €3.649,00

First bike deliveries start at July

Important: Product images are references only. Bike specific information can be found from specifications.

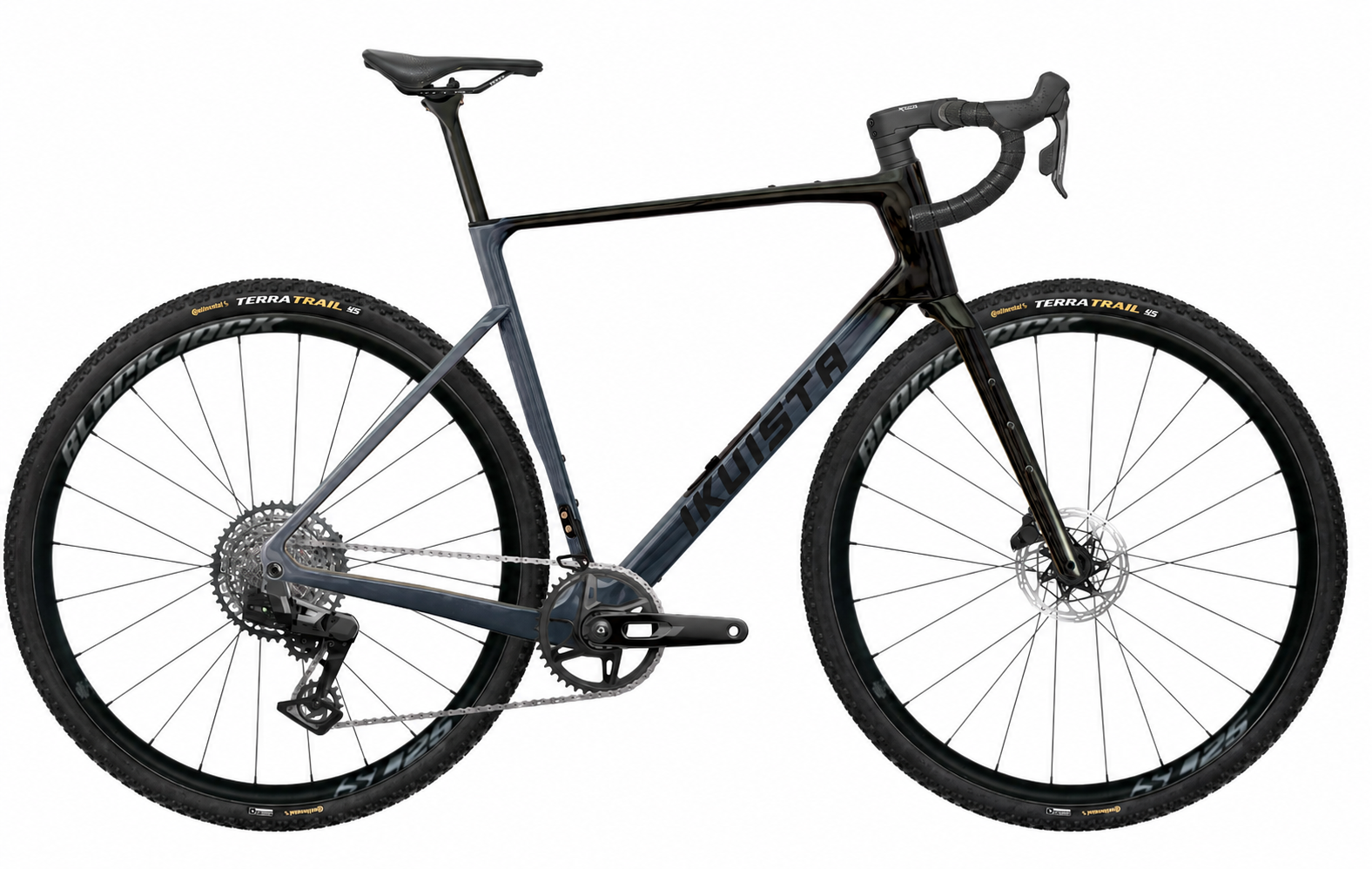

Colour: Obsidian

ObsidianObsidian

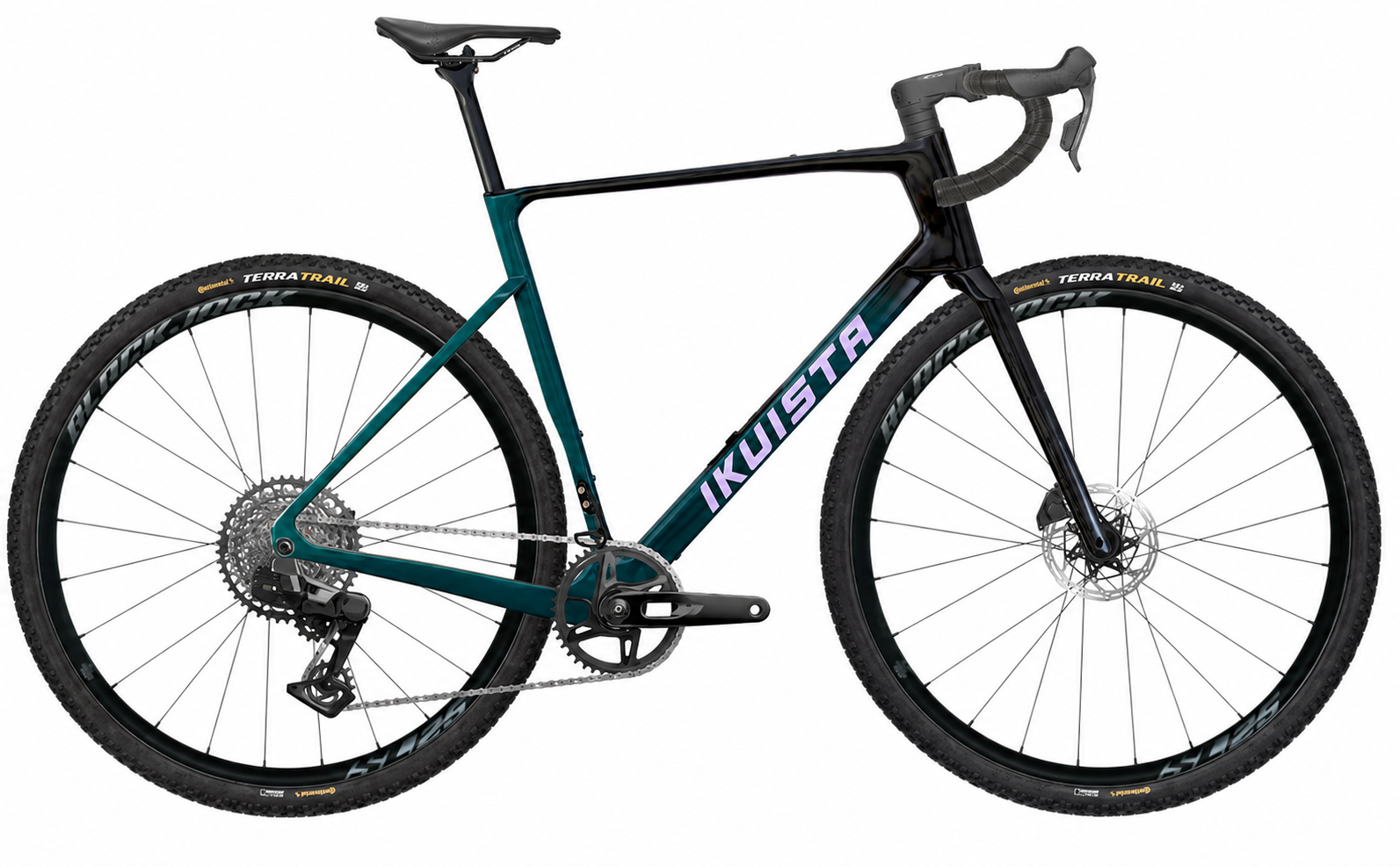

Abyss CyanAbyss Cyan

Size: S

S
M
L
XL
XXL

Product variants

Expected availability –

Pay in parts – up to 36 months at 0% interest with Zaver financing. Show financing calculation

With 36-month term –/mo

Term: 36 mo

Estimated monthly payment –

Estimated total cost –

Product price –

Setup fee –

Monthly fee – /mo

Interest estimate –

This calculation is an estimate. Currency conversion is indicative. Final monthly payment and terms are shown at checkout before confirmation. Read financing terms.

30-day Fit Guarantee

If your bike doesn’t feel right within 30 days of delivery, we’ll help you dial it in. How the Fit Guarantee works

Lifetime Crash Replacement

Ride with confidence. If your frame is damaged, we’ll replace it at 20% of the frame price. How it works

Second Owner Warranty

Adds resale value and peace of mind. The frame warranty transfers to the next owner. How it works

Trade-in & Resale Guarantee

Upgrade or return within 12 months with a guaranteed minimum 50% value. How it works

Assembled & Checked in Finland

Every bike is assembled to order in and individually quality-checked before leaving our facility. Estimated dispatch time is approximately 2 weeks from the date of purchase.

Components

FRAMESET

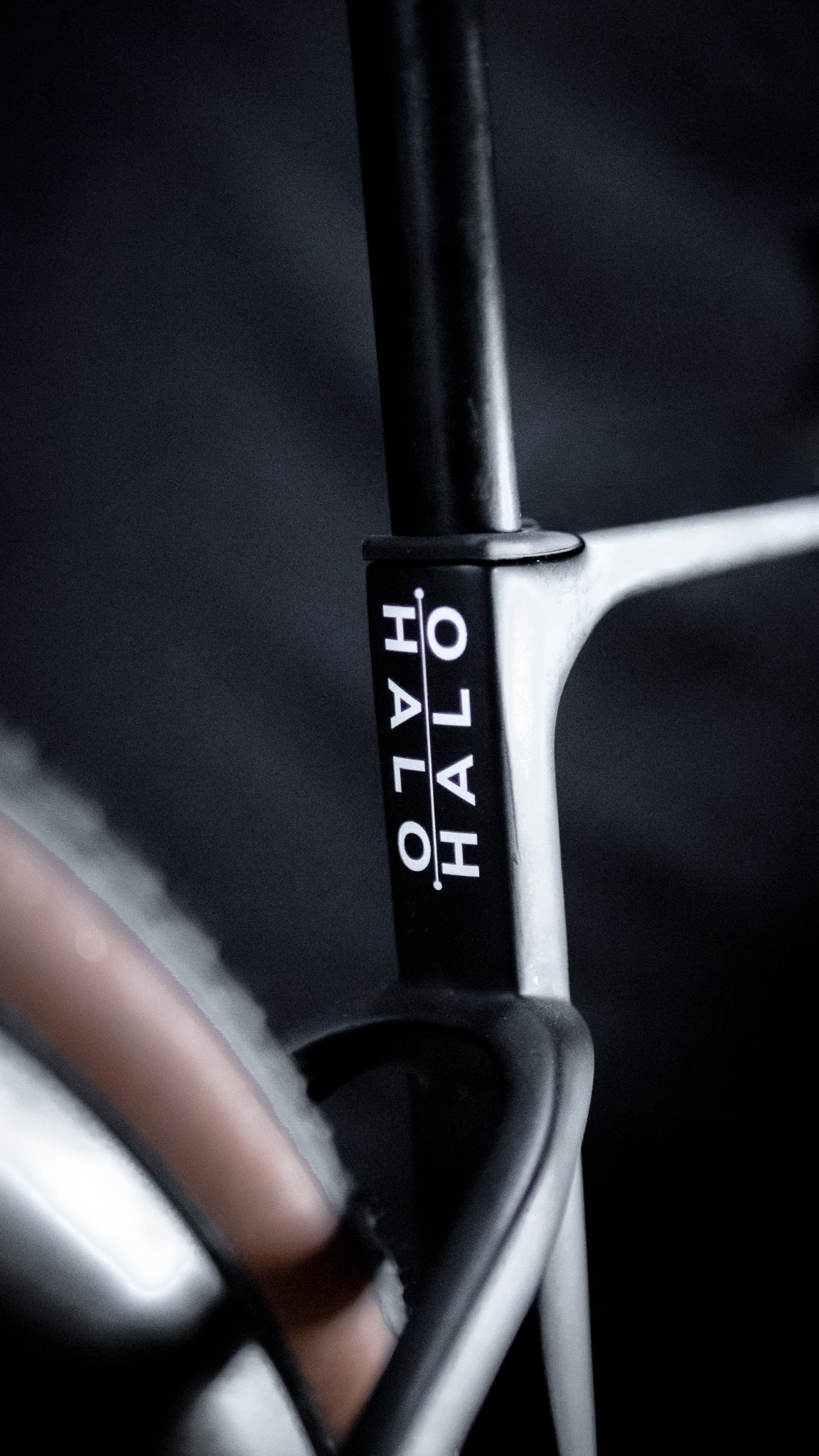

Frame: IKUISTA Halo Cˣ Carbon Monocoque
Frame Sizes: S, M, L, XL, XXL
Geometry: Gravel Race
Colors: Obsidian / Abyss Cyan

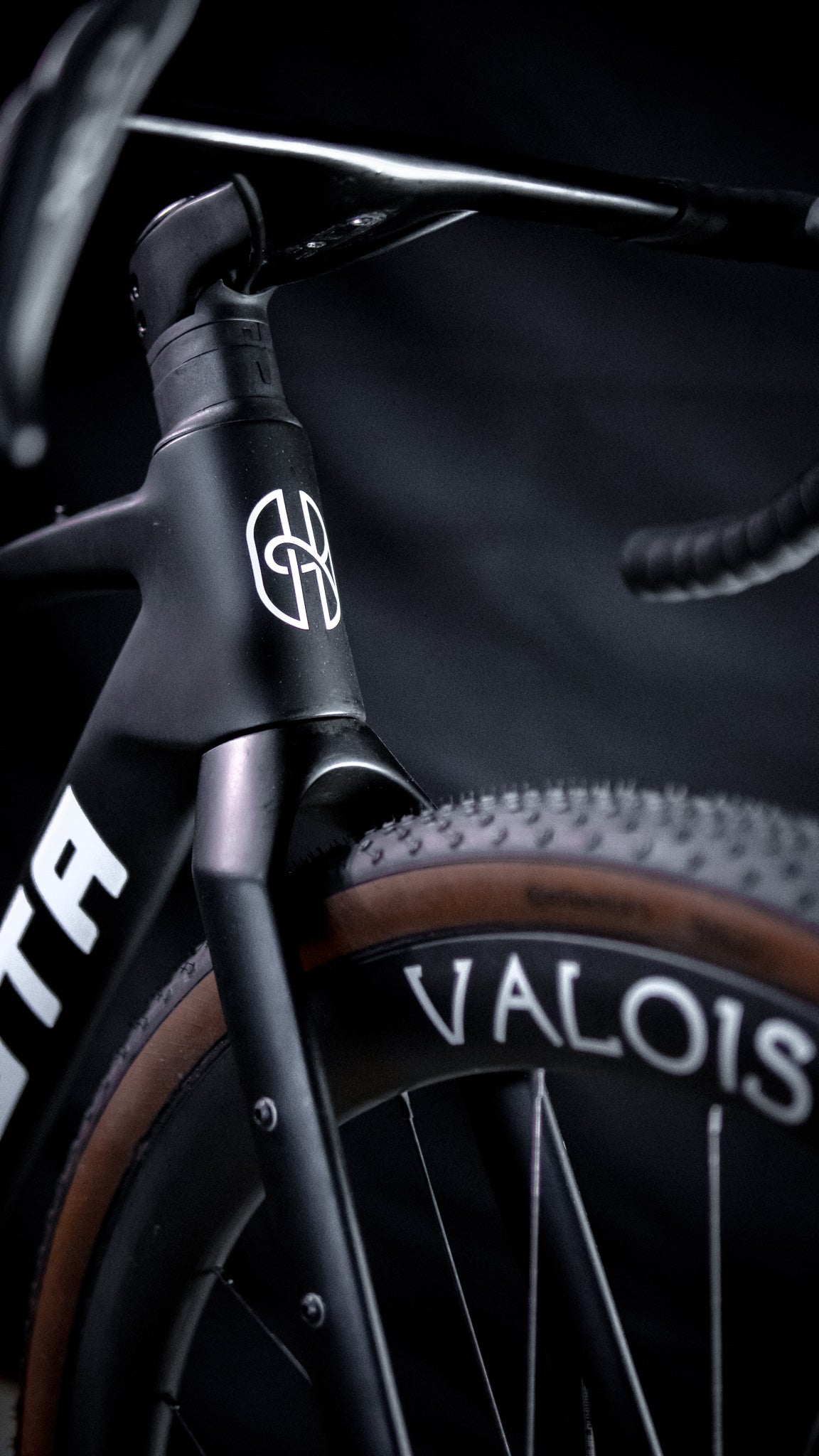

Fork: IKUISTA Halo Cˣ Carbon, Flat Mount, Internal Routing, 12×100 mm thru-axle
Seatpost: IKUISTA Halo Cˣ Carbon, 27.2 mm, 0° Offset
Chain Guide: IKUISTA Chain Guide (1x drivetrain)
Derailleur Hanger: UDH (Universal Derailleur Hanger)
Max Tire Clearance: 50 mm
ASTM Classification: Category 2

WHEELS

Wheelset: Blackjack SL25 Alloy Wheelset
Axles: 12×100 mm (Front) / 12×142 mm (Rear)
Tires: Continental Terra Trail PureGrip ShieldWall
Tire Size: 700×45C (45-622)
Tubeless Ready: Yes (rim tape installed)
Tubeless Valves: IKUISTA 44 mm (included, not installed)
Inner Tube: Included (pre-installed)

DRIVETRAIN

Shifters: SRAM Rival AXS HRD
Brake Calipers: SRAM Rival Hydraulic Disc
Rear Derailleur: SRAM Rival XPLR AXS E1 (13-speed)
Crankset: SRAM Rival XPLR (1x)
Chainring: 40T
Cassette: SRAM XG-1351 (10–46T)
Chain: SRAM Rival Flattop (12/13-speed compatible)
Bottom Bracket: Token T47 Outboard (SRAM DUB compatible)

BRAKES

Brake System: SRAM Rival Hydraulic Disc
Rotors: SRAM CenterLine X Center Lock
Rotor Size: 160 mm (Front & Rear)

COMPONENTS

Saddle: IKUISTA Vael 145 mm
Handlebar Tape: IKUISTA Performance Tape (2.5 mm)

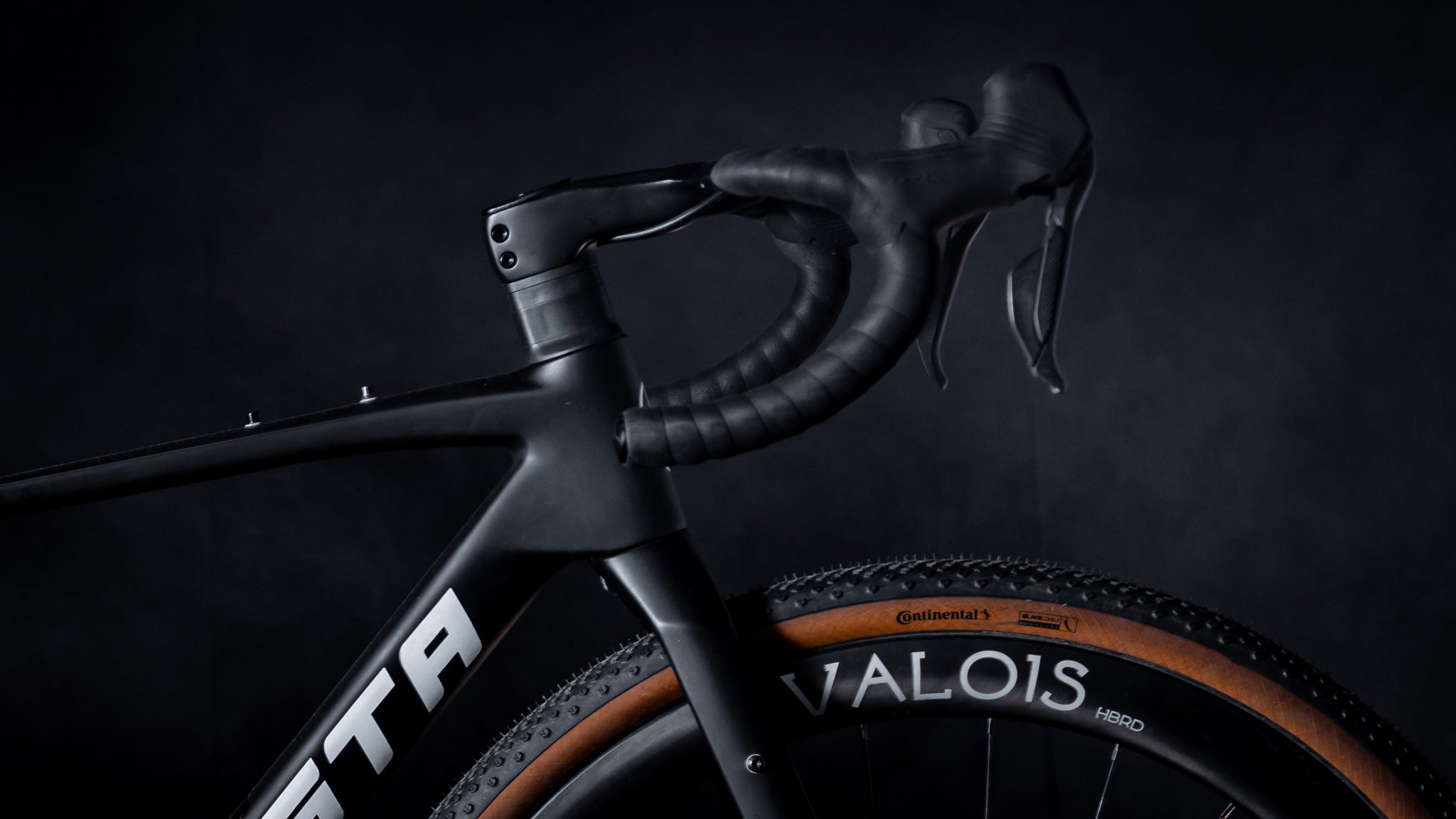

Handlebar: Valois Aˣ HBRD Alloy
Stem: Valois Aˣ Unis Alloy
Chainstay Protection: IKUISTA Chainstay Protector

ELECTRONICS

Battery: SRAM eTap AXS Battery
Charger: SRAM eTap AXS Charger

ACCESSORIES

Bell
Reflector Set
IKUISTA Transport Bag
Product Manual

WEIGHT

Weight: approx. 8.97 kg (Size M, with inner tubes, no pedals)

WEIGHT LIMIT

Maximum System Weight: 120 kg (bike + rider + cargo)

PRODUCT DISCLAIMER

Specifications, components, colors, and pricing may change without notice
Equivalent components may be substituted based on availability
All weights are based on pre-production samples and may vary
Prices are manufacturer’s suggested retail prices (MSRP)**

Components geometry

Component Geometry

Measurement	S	M	L	XL	XXL
Spacers (mm)	30mm	30mm	30mm	30mm	30mm
Stem length (mm)	80mm	90mm	100mm	110mm	110mm
Handlebar width (mm)	400mm	420mm	440mm	440mm	440mm
Crank length (mm)	165mm	170mm	170mm	172.5mm	172.5mm
Front chainring	40T	40T	40T	40T	40T
Saddle post minimum insertion (mm)	–	–	–	–	–
Saddle post maximum extension (mm)	–	–	–	–	–

Geometry chart

Bike Geometry & Sizes

Measurement	S	M	L	XL	XXL
A — Seat tube length	450 mm	480 mm	510 mm	540 mm	570 mm
B — Seat tube angle	75°	74.5°	74°	73.5°	73.5°
C — Head tube length	109 mm	123 mm	142 mm	161 mm	187 mm
D — Head tube angle	71°	71.5°	72°	72.5°	72.5°
E — Top tube length	526 mm	540 mm	561 mm	583 mm	600 mm
G — B.B. drop	78 mm	78 mm	78 mm	78 mm	78 mm
H — Chainstay length	435 mm	435 mm	435 mm	435 mm	435 mm
I — Fork offset	48 mm	48 mm	48 mm	48 mm	48 mm
J — Wheelbase	1020 mm	1025 mm	1037 mm	1048 mm	1066 mm
K — Reach	380 mm	385 mm	395 mm	405 mm	415 mm
L — Stack	545 mm	560 mm	580 mm	600 mm	625 mm
Inseam	72–78 cm	76–83 cm	80–87 cm	84–92 cm	88–96 cm
Rider height	162–170 cm	168–178 cm	176–186 cm	184–194 cm	190–202 cm

Product manuals

Note: Some ad blockers, privacy extensions, antivirus software, corporate networks, or browser security settings may prevent documents from opening. If a file does not load, try another browser or temporarily disable blocking extensions.

Halo Frame Passport

DoC Ikuista

Ikuista Owner s Manual

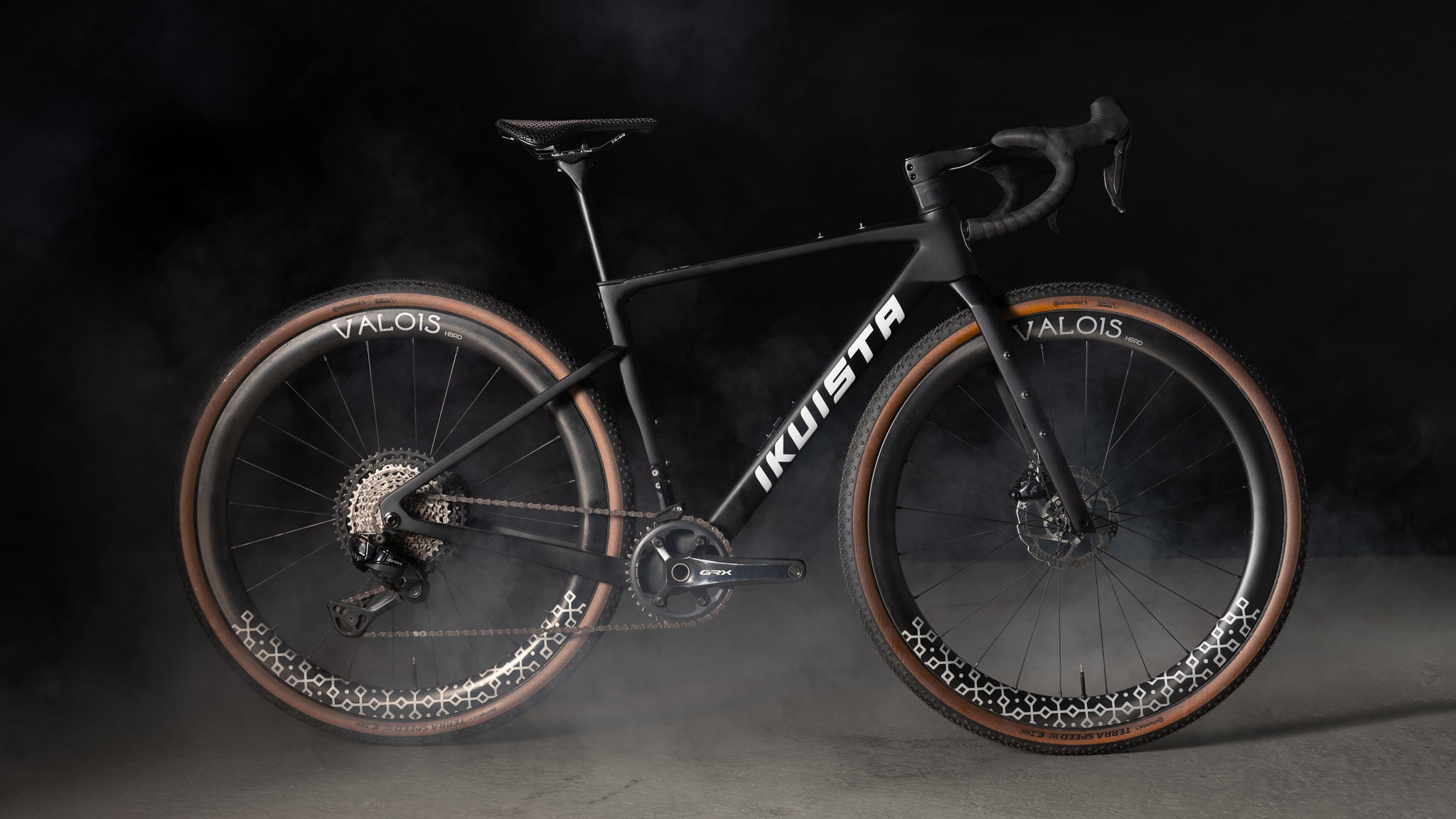

Halo – Gravel Race, Built to Go Fast Everywhere

Halo is IKUISTA’s gravel race platform, engineered for speed on mixed terrain without sacrificing control or efficiency. The carbon monocoque frame prioritizes power transfer and stability at high speeds, making it equally capable on hard-packed gravel, broken asphalt, and long competitive efforts.

With race-oriented gravel geometry and wide tire clearance, Halo balances responsiveness and confidence in technical sections while remaining efficient over distance. It’s designed for riders who treat gravel as a race discipline — not a compromise.

Halo Cˣ SRAM Rival AXS is a performance gravel bike designed for riders who want a more refined wireless drivetrain with improved efficiency and range. It is built for faster riding, longer distances, and demanding terrain.

The Halo Cˣ carbon platform is combined with SRAM Rival XPLR AXS for precise wireless shifting and a wide gear range. The 1x drivetrain keeps the setup clean and reliable, while the alloy cockpit and wheels balance performance and durability.

Built with a Halo Cˣ carbon frameset, SRAM Rival XPLR AXS 1x13 drivetrain, Blackjack SL25 alloy wheelset, Continental Terra Trail 45 mm tires, and Valois Aˣ cockpit. A capable gravel build designed for efficiency and control across varied terrain.
