Frame material - Cˣ - Cross Carbon | Wheelset material - Aluminium | Groupset - Shimano GRX 700 Di2 | Frame fit - Balanced Race | Tyre clearance - 50mm | Real World Weight - Approx 9.14kg (M size)
IKUISTA Fit Recommendation
Bike:—
· —
Important: This tool provides a guideline recommendation based on the measurements you enter.
We cannot guarantee the recommendation is perfect — flexibility, riding style, saddle setup, and personal preference matter. Your final configuration and component choices (size, stem, bar, cranks, spacers) are always your responsibility.
How to measure:
Stand barefoot against a wall. Look forward. Measure to the top of your head.
How to measure:
Barefoot. Place a book firmly into your crotch (like a saddle) and measure from floor to the top edge. Most people are 65–95 cm — if yours is far from this, check you measured in cm, not inches.
How to measure:
Measure bone-to-bone across shoulders (acromion to acromion), not shirt seam to seam. Bar width is measured center-to-center (c-c).
Riding positioni
What this affects:
This slider affects frame size, stem and spacers. In a size-overlap zone a more comfortable position picks a bigger frame + shorter stem (higher front end); a more aggressive position picks a smaller frame + longer stem (lower front end).
Endurance
ComfortEnduranceRace
i
What this affects:
With clip-on aero bars your forearms rest on pads and your grip moves forward. We then recommend a shorter stem and, between two sizes, the bigger frame — a higher, more stable front end is easier to hold in the aero position. In aero use the saddle often moves slightly forward and up.
Extra measurement (optional)
How to measure:
Measure suprasternal notch (base of throat) → crotch (same point as inseam). Tape runs along the front of your body. This refines frame size and cockpit/stem. Most people are 45–65 cm — if yours is far from this, check you measured in cm, not inches.
How to test:
Stand with straight legs and reach toward your toes. Can't get near = stiff. Reach your toes = average. Palms flat on the floor = supple. This tells us how low a riding position you can hold comfortably.
Your recommendation
Recommended size:—
This is the bike frame size. Choose this when you order.
Saddle height:—
Set your saddle to this height. Measure from the top of the saddle down to the pedal, with the pedal at its lowest point. Fine-tune to comfort.
Handlebar width:—
Order a handlebar of this width.
Stem:—
The short part that connects the handlebar to the frame. Order this length.
Spacers:—
Small rings under the stem that set the handlebar height. Start with this amount.
Configurator link missing: add configurator_url to the bike_model entry.
Tip: take a screenshot before going to the configurator.
Expected availability–
Missing components
Pay in parts – up to 36 months at 0% interest with Zaver financing.
Show financing calculation
With 36-month term–/mo
12 mo24 mo36 mo
Estimated monthly payment–
Estimated total cost–
Product price–
Setup fee–
Monthly fee–/mo
Interest estimate–
This calculation is an estimate. Currency conversion is indicative. Final monthly payment and terms are shown at checkout before confirmation.
Read financing terms.
Bike Leasing Options
Choose your preferred shipping partner at checkout. IKUISTA offers flexible delivery options through Vapaus and GoByBike, both trusted carriers. Select the option that works best for your location and timeline. Each carrier provides reliable tracking and professional handling of your bike or components, ensuring your order arrives in perfect condition.
30-day Fit Guarantee
If your bike doesn’t feel right within 30 days of delivery, we’ll help you dial it in. How the Fit Guarantee works
Lifetime Crash Replacement
Ride with confidence. If your frame is damaged, we’ll replace it up to 30% of the frame price. How it works
Optional Extended Warranty
Purchase Here - Add resale value and peace of mind. The frame warranty transfers to the next owner. How it works
Trade-in & Ikuista Renewed
Trade your Ikuista back toward a new one, at a value we set by inspection. We take back any Ikuista, whatever its age. How it works
Assembled & Checked in Finland
Every bike is assembled to order in and individually quality-checked before leaving our facility. Estimated dispatch time is approximately 2 weeks from the date of purchase.
We take the whole bike back for recycling
Hand over the whole bike at the end of its life. No dismantling, no sorting. Our partner Kuusakoski recycles it all, metal and carbon alike, back into raw material. Read more
Wheelset: Blackjack SL25 Asy Alloy Wheelset, Asymmetric Tubeless Ready Rim, 25 mm Internal Width, 24 mm Rim Depth, CenterLock Disc, Max System Weight 130 kg
Tires: Continental Terra Trail PureGrip ShieldWall Folding, 700×45C (45-622)
Tubeless Ready: Yes (rim tape installed), IKUISTA 44 mm tubeless valves included (not installed), inner tubes installed from factory
Rotors: Shimano SM-RT64 CenterLock, 160 mm Front / 160 mm Rear
COCKPIT
Handlebar: Valois Aˣ HBRD Alloy
Stem: Valois Aˣ Unis Alloy
Saddle: IKUISTA Kulkia, 145 mm
Handlebar Tape: IKUISTA Performance Tape, 2.5 mm
Chainstay Protection: IKUISTA Chainstay Protector
ELECTRONICS
Battery: Shimano BT-DN320 Internal Battery
Charger: Shimano EC-DN100
ACCESSORIES
Bike Bell
Reflector Set
IKUISTA Bicycle Bag
Product Manual
WEIGHT
Claimed Weight: Approx. 9.14kg (Size M, inner tubes installed, no pedals)
WEIGHT LIMIT
Maximum System Weight: 120 kg (bike + rider + cargo)
PRODUCT DISCLAIMER
Specifications, geometry, colors, graphics, components, weights, and pricing may change without prior notice.
Product images may show optional equipment, prototype components, or specifications not included in the final production model.
Equivalent or higher-specification components may be substituted due to continuous product development or component availability.
Claimed weights are based on pre-production samples and manufacturer measurements. Actual production weights may vary by frame size, paint finish, component tolerances, and production batch.
Tire clearance values are based on measured tire dimensions and may vary between manufacturers and wheel combinations.
Bicycle weights are stated without pedals unless otherwise specified.
Maximum system weight includes the bicycle, rider, clothing, accessories, luggage, and cargo.
MSRP pricing may vary by country, taxes, shipping costs, import duties, and dealer-installed options.
Geometry chart
Bike Geometry & Sizes
Measurement
S
M
L
XL
XXL
A — Seat tube length
450 mm
480 mm
510 mm
540 mm
570 mm
B — Seat tube angle
75°
74.5°
74°
73.5°
73.5°
C — Head tube length
109 mm
123 mm
142 mm
161 mm
187 mm
D — Head tube angle
71°
71.5°
72°
72.5°
72.5°
E — Top tube length
526 mm
540 mm
561 mm
583 mm
600 mm
G — B.B. drop
78 mm
78 mm
78 mm
78 mm
78 mm
H — Chainstay length
435 mm
435 mm
435 mm
435 mm
435 mm
I — Fork offset
48 mm
48 mm
48 mm
48 mm
48 mm
J — Wheelbase
1020 mm
1025 mm
1037 mm
1048 mm
1066 mm
K — Reach
380 mm
385 mm
395 mm
405 mm
415 mm
L — Stack
545 mm
560 mm
580 mm
600 mm
625 mm
Inseam
72–78 cm
76–83 cm
80–87 cm
84–92 cm
88–96 cm
Rider height
162–170 cm
168–178 cm
176–186 cm
184–194 cm
190–202 cm
Components geometry
Component Geometry
Measurement
S
M
L
XL
XXL
Spacers (mm)
30mm
30mm
30mm
30mm
30mm
Stem length (mm)
80mm
90mm
100mm
100mm
110mm
Handlebar width (mm)
400mm
420mm
420mm
440mm
440mm
Crank length (mm)
165mm
170mm
170mm
172.5mm
172.5mm
Front chainring
40T
40T
40T
40T
40T
Saddle post minimum insertion (mm)
–
–
–
–
–
Saddle post maximum extension (mm)
–
–
–
–
–
Product manuals
Note: Some ad blockers, privacy extensions, antivirus software, corporate networks, or browser security settings may prevent documents from opening. If a file does not load, try another browser or temporarily disable blocking extensions.
I have to say, compared to my own old beater bike, this is a completely different ride.
— AamulehtiTomi Pyy, journalist, Aamulehti, First ride impression, July 2026

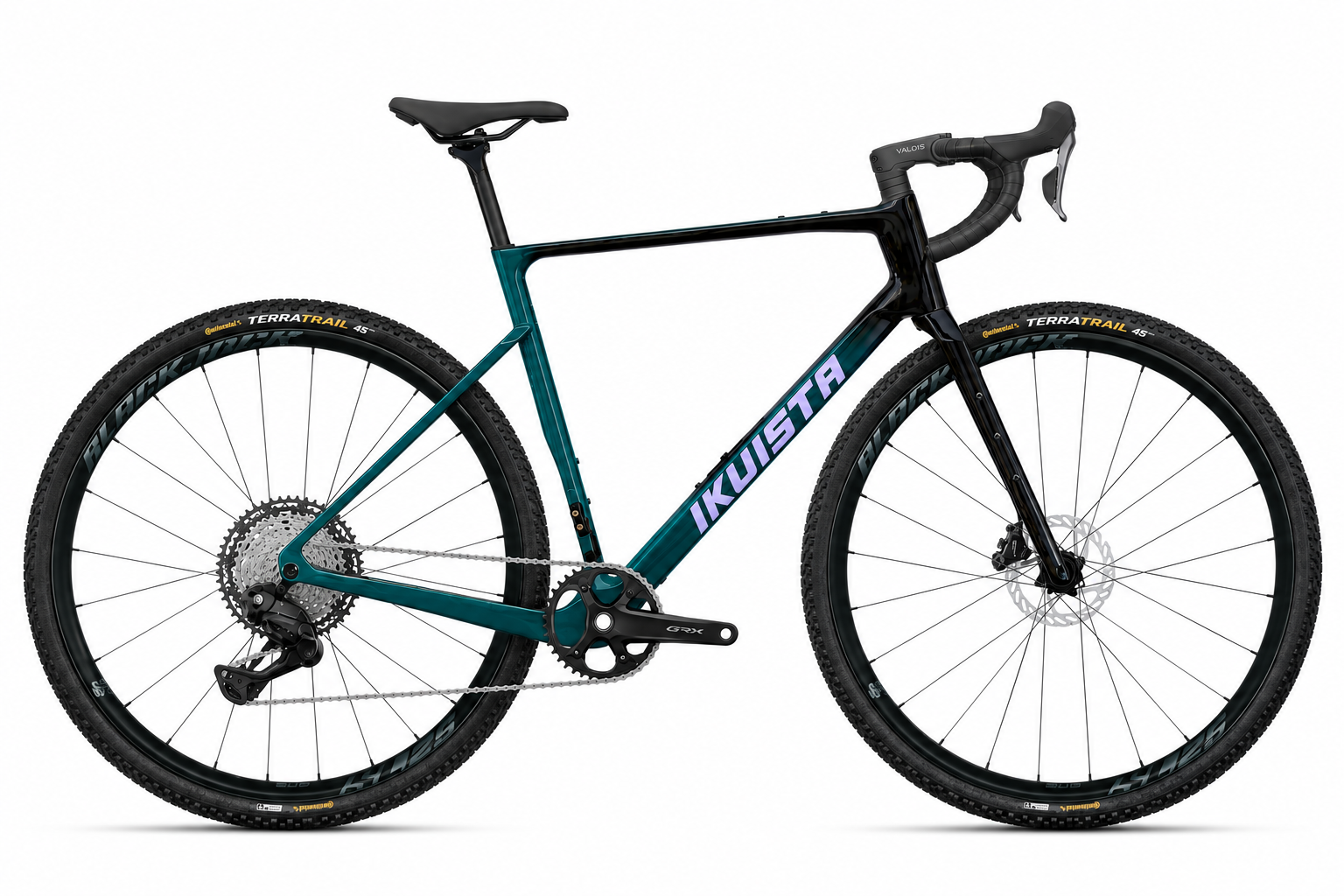

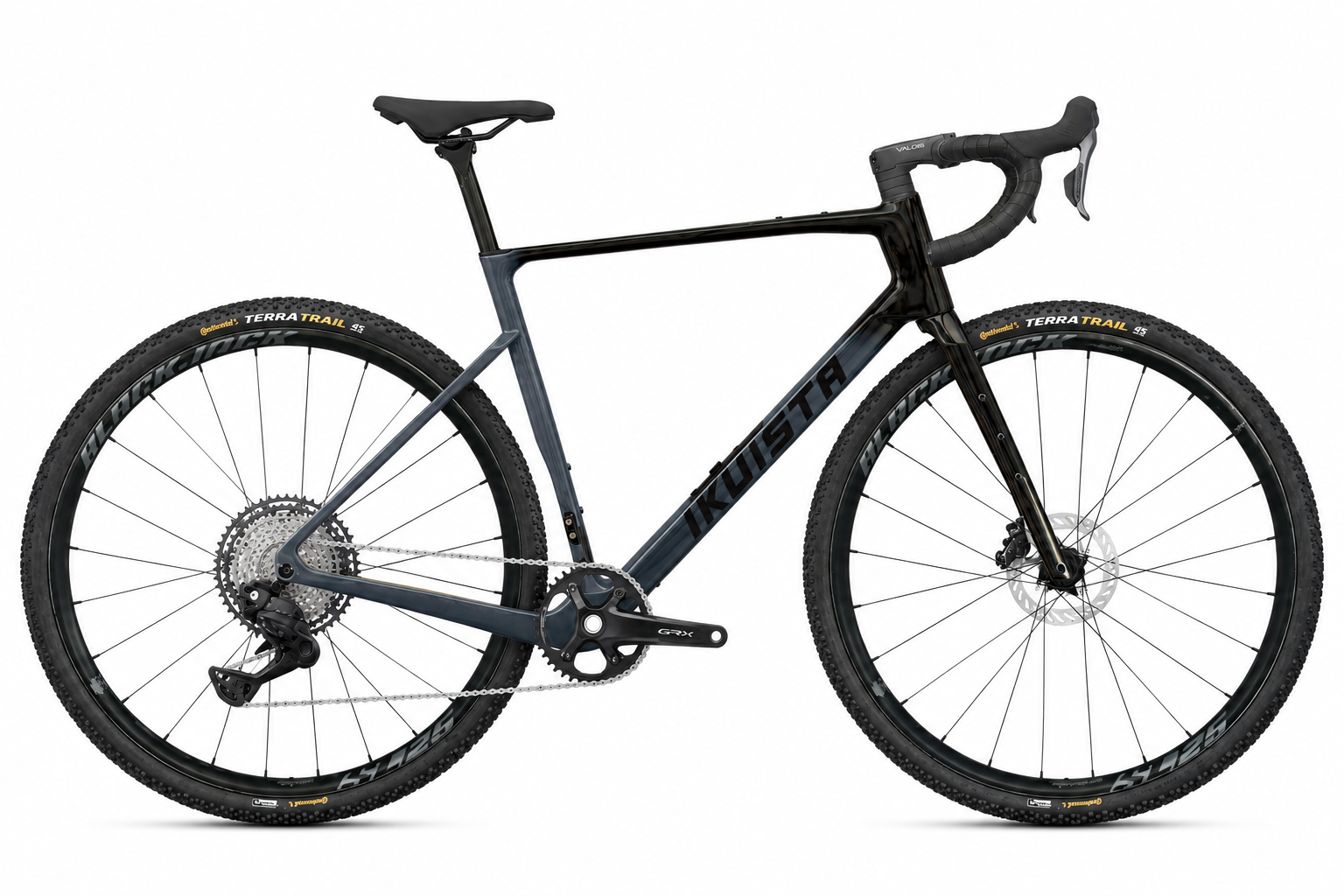

Halo – Gravel Race, Built to Go Fast Everywhere
Halo is IKUISTA’s gravel race platform, engineered for speed on mixed terrain without sacrificing control or efficiency. The carbon monocoque frame prioritizes power transfer and stability at high speeds, making it equally capable on hard-packed gravel, broken asphalt, and long competitive efforts.
With race-oriented gravel geometry and wide tire clearance, Halo balances responsiveness and confidence in technical sections while remaining efficient over distance. It’s designed for riders who treat gravel as a race discipline — not a compromise.
Halo Cˣ Shimano GRX Di2 is a versatile gravel race bike for riders who want electronic shifting and strong performance with a more robust and accessible setup. It is built for demanding gravel routes and all-day riding.
The Halo Cˣ carbon platform pairs stable geometry and wide tire clearance with Shimano GRX Di2 shifting for consistent performance in all conditions. The 1x drivetrain with chain guide keeps the system simple and secure, while the alloy cockpit and wheelset prioritize durability and ease of maintenance.
Built with a Halo Cˣ carbon frameset, Shimano GRX Di2 1x12 drivetrain, Blackjack SL25 alloy wheelset, Continental Terra Trail 45 mm tires, and Valois Aˣ cockpit. A durable and performance-focused gravel configuration designed for reliability and control.
